SDI / BNC COFDM Wireless Transmitter and Receiver 5-20 Watt FULL HD Video Transmitter IP66
Long range video transmitter introduction:
KP-HD20 is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and MPEG-4 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission.Good heat resistant with two cooling fans.Be safety with AES128/256bits.Can work well in fast-moving transmission.
Features:
- COFDM modulation, Stable transmission
- MPEG-4 video compression, DVD video quality

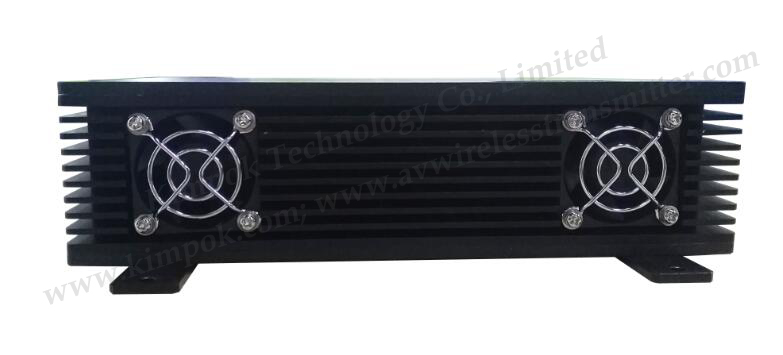

- Military aluminum housing ,Strong casing with built-in two cooling fans
- Mobile and NLOS(Non line-of-sight) transmission
- Great security by encryption of AES 128 bits
- Low system latency
- Modular design, compact structure, OEM design
- Several wavebands available: VHF/L/ S
- Can be customized to add additional features,such like HD/HD-SDI, data port, Ehernet and etc..
Specifications:
| Modulation | CODFM |
| DC input | DC12V-DC14V |
| Working Current | ≤4.7A@DC12V |
| Constellation | QPSK,16QAM,64QAM (optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Carrier | 2K |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Frequency | 138-4400MHz (available) |
| RF power output | 5-20W |
| A/V interface | HD-SDI; BNC |
| RF interface | N type |
| Flatness | ≤2dB(within full frequency range), ≤0.5dB(within 8MHz) |
| Video Harmonic | 1Vp-p @ 75Ω, NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video Compression | MPEG-4/H.264 |
| Resolution | 1980*1080 |
| Video Rate | 6Mbps |
| Casing Protection | IP66 (dustproof, rainproof) |
| Work environment | -30~70° |
| Dimension | 220*140*60MM |
| Weight | 2.3kg |
FULL HD COFDM Wireless Transmitter Application:
This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.
